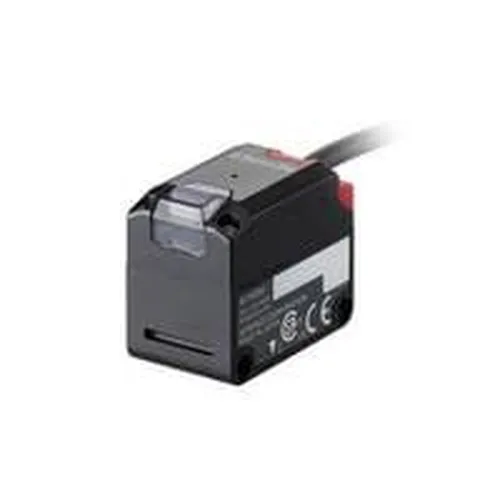

Pattern Matching Sensor keyence AI-H050

Name: Pattern Matching Sensor keyence AI-H050
Brand: keyence
SKU: AI-H050
Availability: InStock
Rating: 5 (1 reviews)

Nhà sản xuất:

keyence

Mã sản phẩm:

AI-H050

Pattern Matching Sensor keyence AI-H050 : Cảm biến so sánh khớp mẫu

Tình trạng:

Hết hàng

Liên hệ

Thông số kỹ thuật keyence AI-H050 :

Model		AI-H050
Installation Distance		45 to 55 mm 1.77 to 2.17"
Detection Area	1X Zoom to 4X Zoom	4 × 4 mm 0.16 × 0.16" to 16 × 16 mm 0.63 × 0.63"^*1
	Digital Zoom	1X to 4X (17 steps) adjustment, zoom position adjustment^*1
Light Receiving Element		BW CMOS
Transmitter	Light Source	Red LED (660 nm)
	Lighting Method	Pulse lighting
Indicators		1 (green/red/orange)
Environmental resistance	Enclosure rating	IP67^*2
	Ambient temperature	-10 to +50 °C 14 to 122 °F (No freezing)
	Relative humidity	35 to 85 % RH (No condensation)
	Vibration resistance	10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
	Shock resistance	500 m/s², 3 times in each of 6 directions
Materials		Main unit case: Zinc die-cast/PBT; Front cover: Acrylic (hard coat); Cable: PVC Operation indicator: PPSU; Polarized filter case: POM
Weight		Approx. 70 g (including polarized filter)
