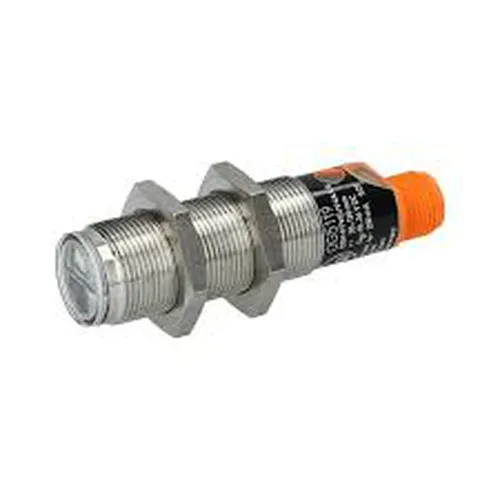

Cảm biến laser IFM OG5119

Cảm biến laser IFM OG5119

IFM
IFM OG5119

Diffuse reflection sensors with background suppression
OG5119
OGH-FPKG/V4A/US-100

Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng

Còn hàng
Liên hệ

Thông số kỹ thuật cảm biến điện dung IFM KG6000:

Product characteristics
Type of light red light
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 70.5
Application
System gold-plated contacts; Background suppression
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 40
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 660
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 150; (200 (...60 °C))
Switching frequency DC [Hz] 250
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range [mm] 30...130; (white paper 200 x 200 mm 90 % remission)
Range adjustable yes
Max. light spot diameter [mm] 12
Light spot dimensions refer to at maximum range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -20...80
Protection IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
Mechanical data
Weight [g] 65.3
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 70.5
Thread designation M18 x 1
Material stainless steel (1.4404 / 316L); PBT
Lens material
PMMA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Function 1 x LED, red
Accessories
Items supplied
lock nuts: 2 x
Remarks
Remarks
cULus - Class 2 source required
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; Contacts: gold-plated
Diagrams and graphs
Background suppression chart
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
  Note : range % = setting in % of the range
