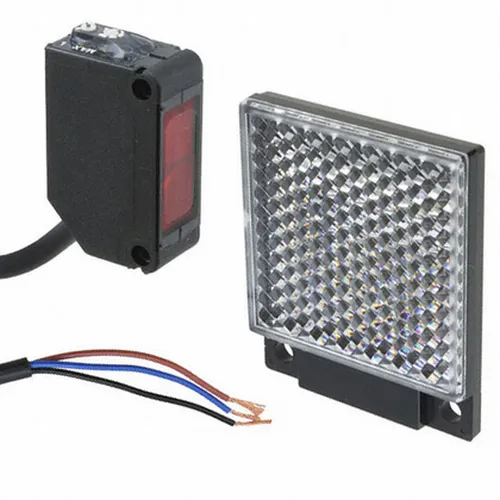

Panasonic CX-483

Nhà sản xuất:

Panasonic

Mã sản phẩm:

CX483

Hàng chính hãng

Part Number	: panasonic CX-483
Product	: Compact Photoelectric Sensor
Details	: Retroreflective(For transparent object sensing)

Tình trạng:

Còn hàng

Liên hệ

Mô tả
Bình luận

Thông số kỹ thuật panasonic CX-483 :

Item	Specifications
Product Number	CX-483
Part Number	CX-483
CE marking directive compliance	EMC Directive, RoHS Directive
Sensing range	50 to 1,000mm 1.969 to 39.37 in (Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.
Sensing object	Ø50 mm Ø1.969 in or more transparent,translucent or opaque object (Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor. (Note) Make sure to confirm detection with an actual sensor before use.
Hysteresis	-
Repeatability(perpendicular to sensing axis)	0.5 mm 0.020 in or less
Supply voltage	12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption	10 mA or less
Output	NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output:Output operation	Switchable either Light-ON or Dark-ON
Output:Short-circuit protection	Incorporated
Response time	1 ms or less
Operation indicator	Orange LED(lights up when the output is ON) (incorporated on the receiver for thru-beam type)
Stability indicator	Green LED(lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type)
Power indicator	-
Sensitivity adjuster	Continuously variable adjuster(incorporated on the receiver for thru-beam type)
Automatic interference prevention function	Incorporated(Two units of sensors can be mounted close together.)
Protection	IP67 (IEC)
Ambient temperature	- 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient humidity	35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance	Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability	1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance	20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance	10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock resistance	500 m/s²acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element (modulated)	Infrared LED
Emitting element (modulated):Peak emission wavelength	870 nm 0.034 mil
Material	Enclosure: PBT (polybutylene terephthalate) Lens: polycarbonate Indicator cover: polycarbonate
Cable	0.2 mm²3-core cabtyre cable, 2 m 6.562 ft long
Cable extension	Extension up to total 100 m 328.084 ft is possible with 0.3 mm², or more, cable.
Weight	Net weight: 50 g approx. Gross weight: 80 g approx.
Accessory	RF-230 (Reflector): 1 pc.
