OXH7-11159406 Light-section sensors

7.000.000VND 59.000.000VND -88%

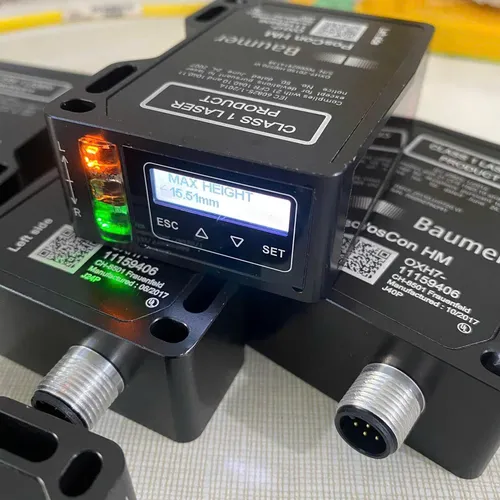

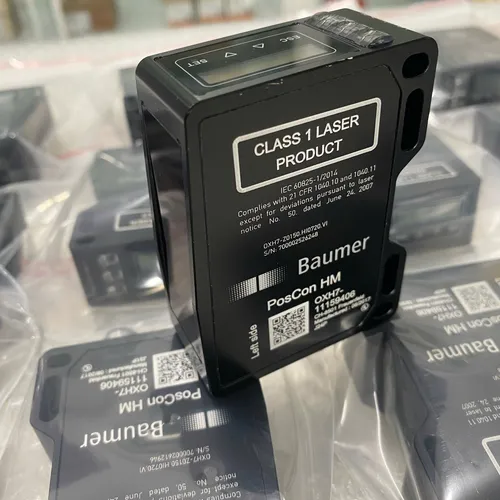

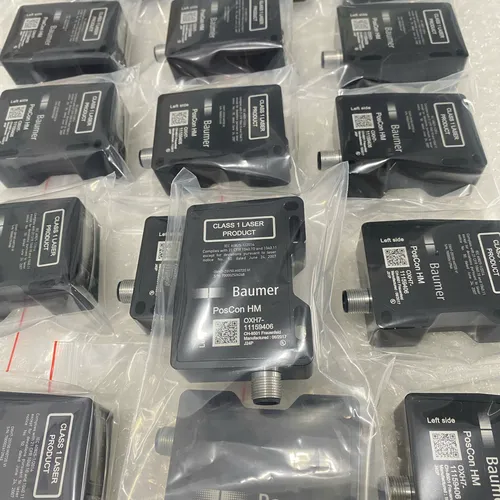

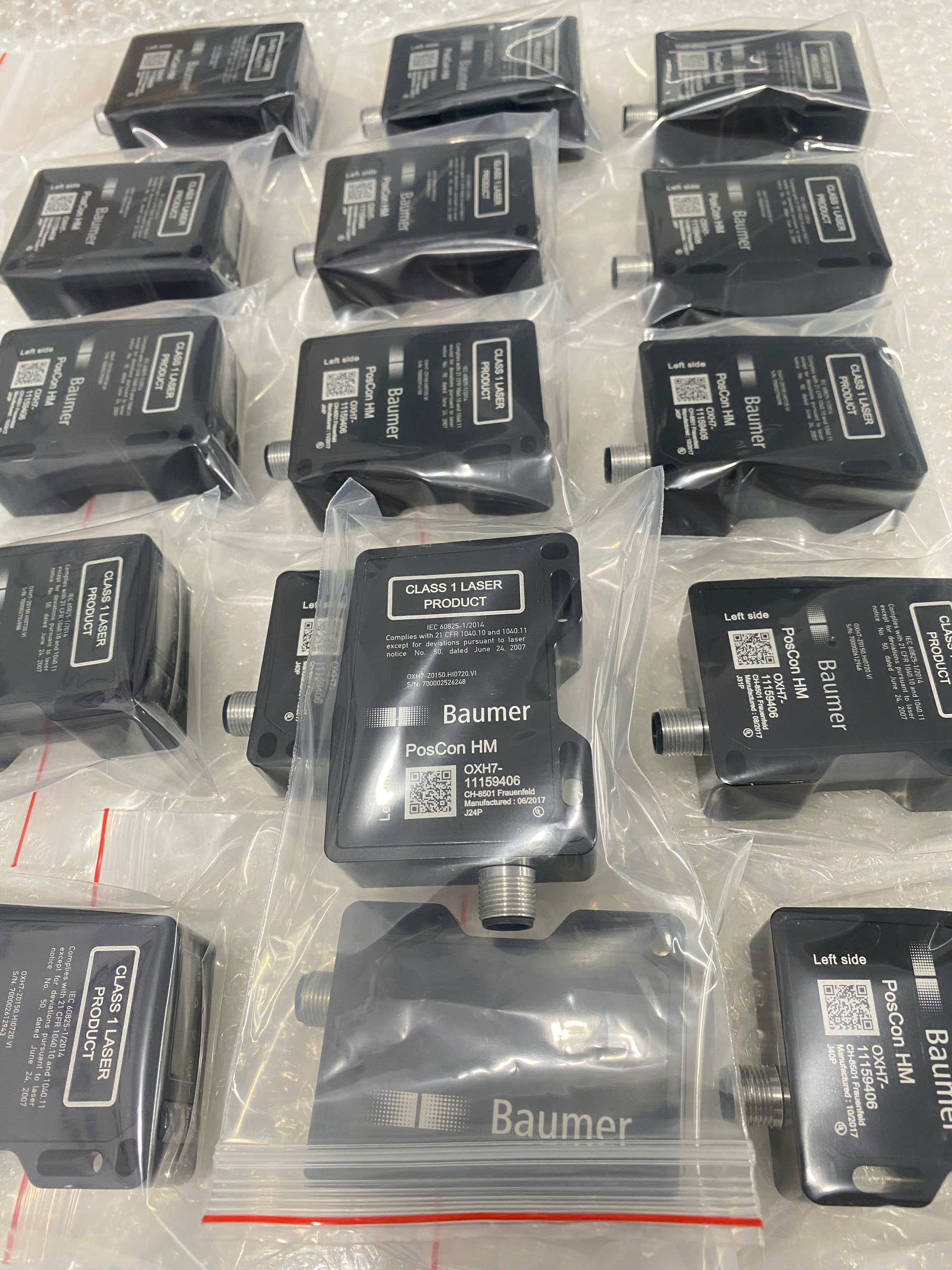

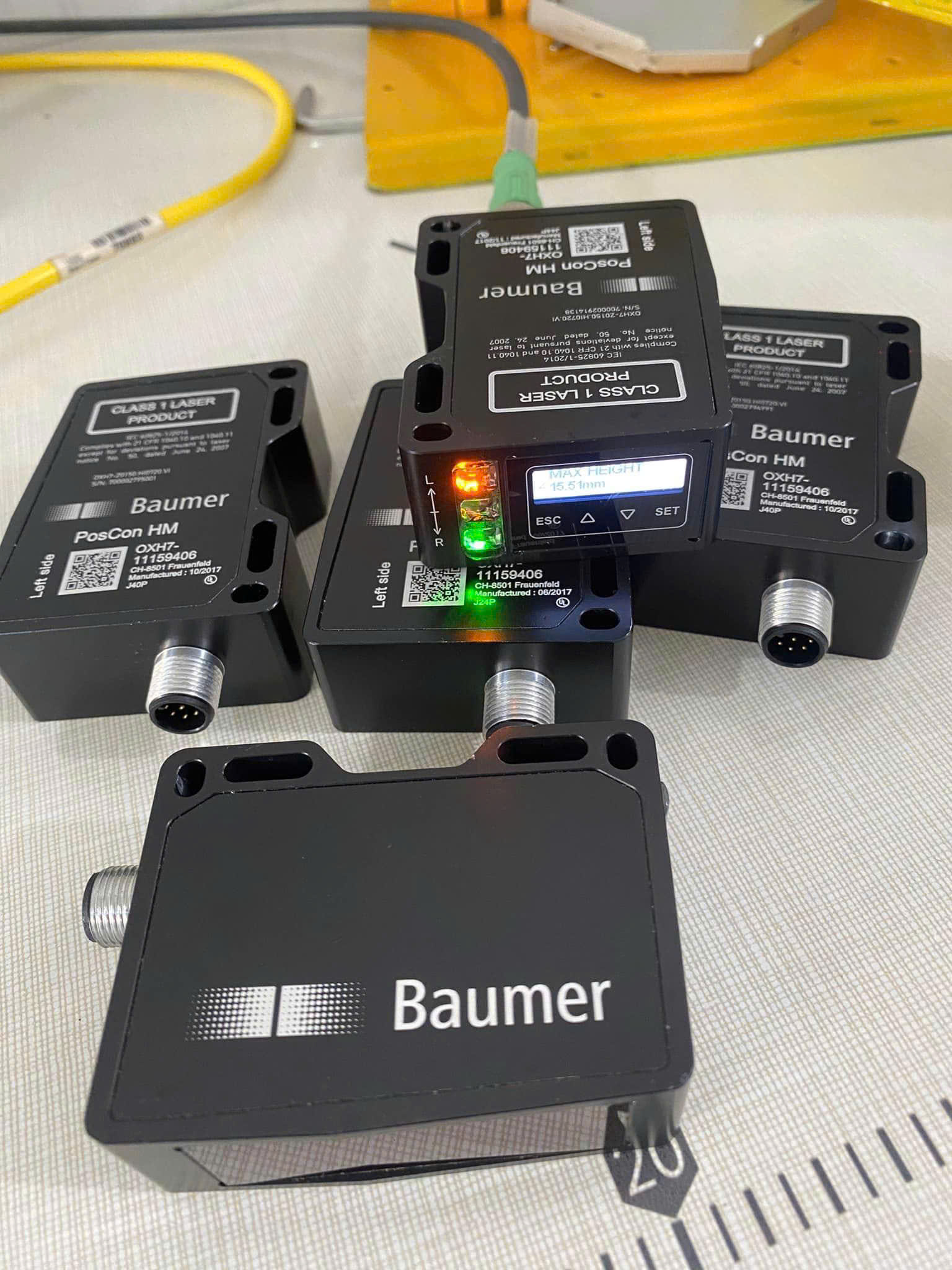

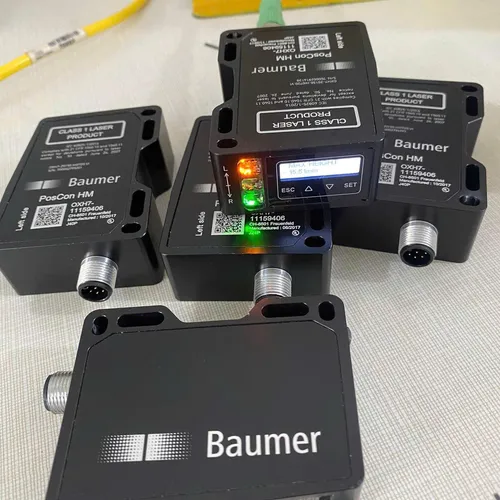

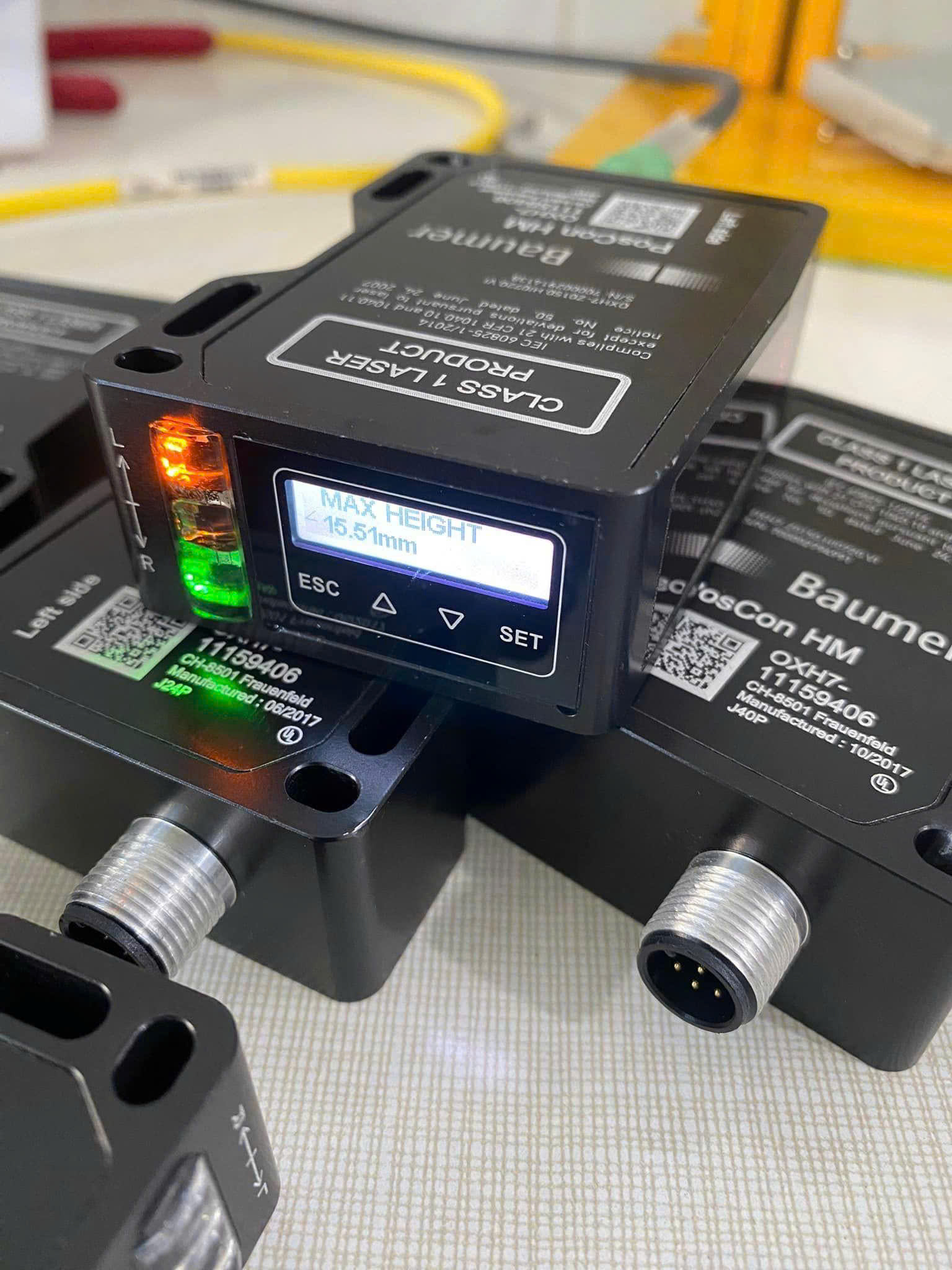

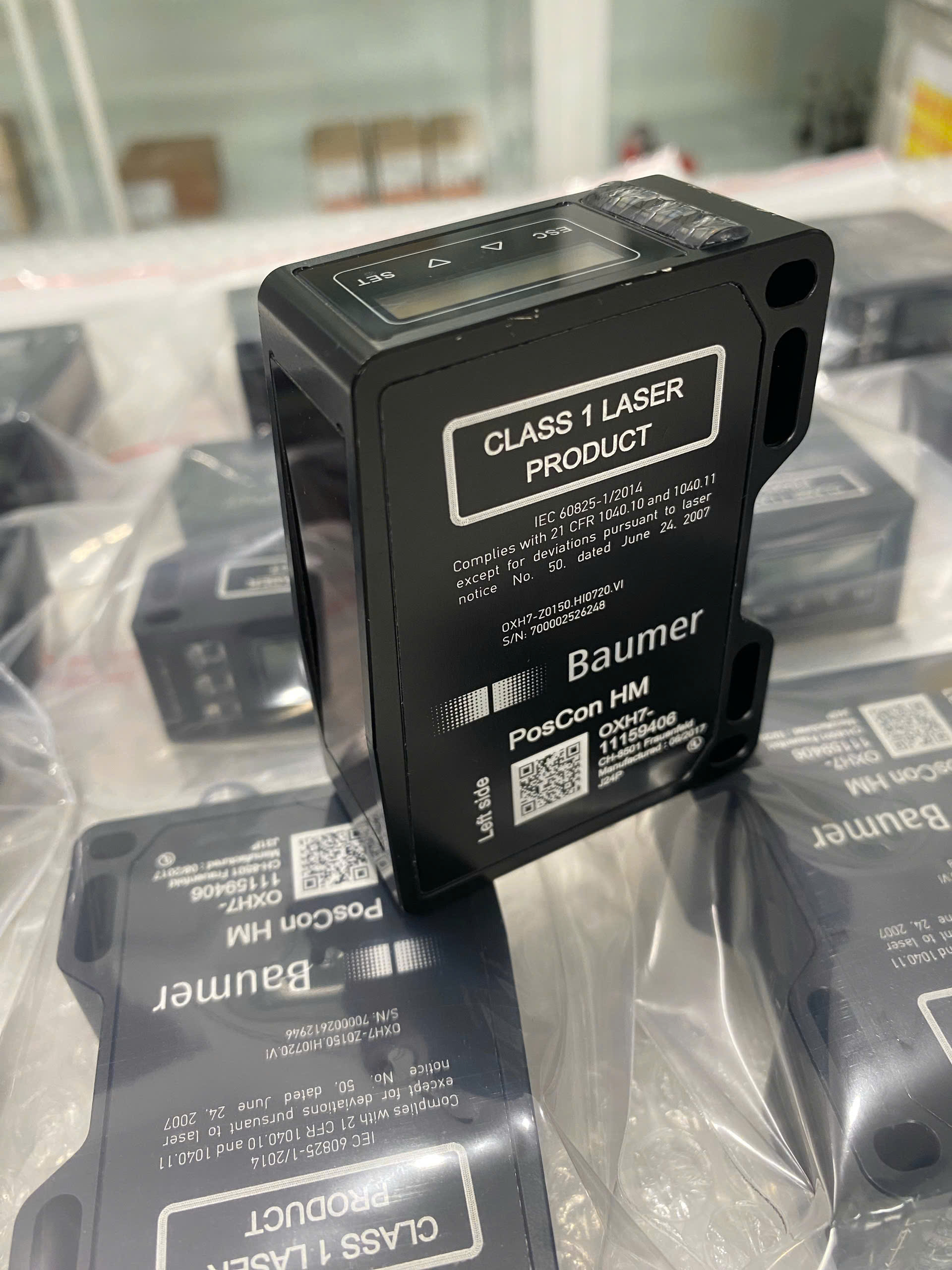

BAUMER OXH7-11159406

OXH7-11159406 Light-section sensors :

  • 100 … 150 mm
  • pulsed red laser diode
  • analog and RS 485
  • Touch Display, RS485
  • connector M12 8 pin
  • -10 … 50 °C
  • IP 67

HÀNG LIKE NEW 98 %


Còn hàng
1

General data :OXH7-11159406 Light-section sensors

Type Height
Version PosCon OXH7
Measuring range (width) 48 … 72 mm
Measuring range (distance)
100 … 150 mm
Measuring frequency
570 Hz
Resolution
2 … 4 µm
Linearity error
  • ± 30 … 90 µm
Temperature drift
  • ± 0,04 % Sde/K
Power on indication
LED green
Light source
  • Pulsed red laser diode
Wave length
656 nm
Laser class 1
Optical peak power max.
2.4 mW
Adjustment
Touch Display, RS485
Electrical data
Response time / release time : 3.5 ms
Voltage supply range +Vs :15 … 28 VDC
Current consumption max. (no load) :120 mA
Output circuit : Analog and RS 485
Output signal : 4 ... 20 mA / 0 ... 10 VDC
Switching output :    Push-pull
Output function : Out 1 / Alarm
Output current : 100 mA
Baud rate : 115200, adjustable
Reverse polarity protection : Yes, Vs to GND
Short circuit protection : Yes
  • Data sheet – OXH7-Z0150.HI0720.VI TẠI ĐÂY
  • Operating instruction – PosCon OXH7 TẠI ĐÂY
  • Operating instruction – RS485 PosCon OXH7 commands TẠI ĐÂY
  • Operating instruction – RS485 protocol structure TẠI ĐÂY
