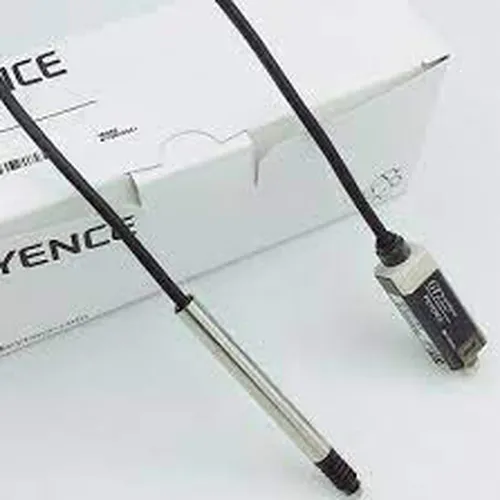

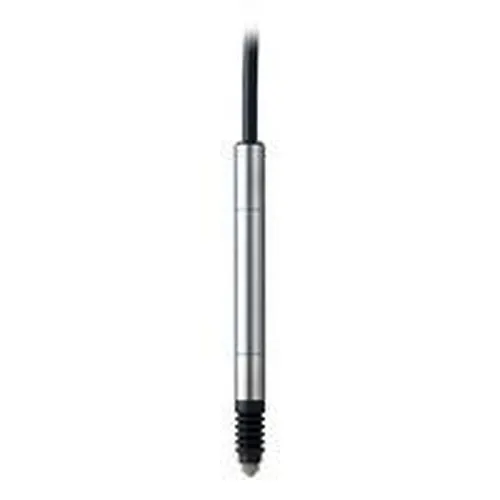

Thông số kỹ thuật bộ cảm biến tiếp xúc kỹ thuật số có độ chính xác cao keyence GT2-S5:
|
Model |
GT2-S5*1 |
|||
|
Detection system |
Differential transformer |
|||
|
Measuring range |
5 mm 0.20"*2 |
|||
|
Operating range |
7 mm 0.28"*2 |
|||
|
Resolution |
0.1 µm |
|||
|
Indicated accuracy |
1 µm (P-P)*3*4 |
|||
|
Measuring force |
Downward mounting |
1.0 N*5 |
||
|
Side mounting |
0.95 N*5 |
|||
|
Upward mounting |
0.9 N*5 |
|||
|
Sampling cycle |
1 ms |
|||
|
Mechanical response |
20 Hz*4 |
|||
|
Operation indicator light |
2-color LED (red, green) |
|||
|
Environmental resistance |
Enclosure rating |
IP67G (JIS)*6, IP67 (IEC) |
||
|
Ambient temperature |
-10 to +55 °C 14 to 131 °F (No freezing) |
|||
|
Relative humidity |
10 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Shock resistance |
1,000 m/s2 (IEC60068-2-27) |
|||
|
Materials |
Main body |
Main body case: SUS430F, Sensor head-relay connector cable: PUR, Relay amplifier: PPSU |
||
|
Dust boot |
NBR |
|||
|
Contact |
SUS304, cemented tungsten carbide*7 |
|||
|
Sensor head cable |
Optional (connect to relay connector) |
|||
|
Weight |
Approx. 40 g (not including cable)*8 |
|||
