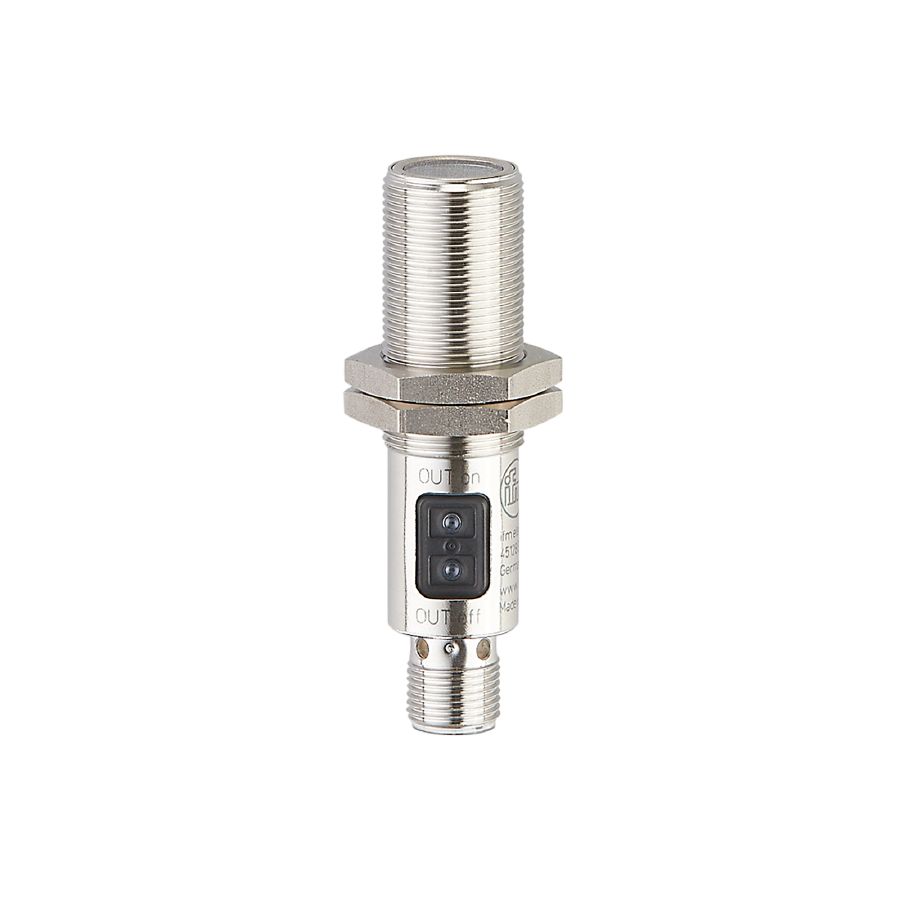

Thông số kỹ thuật IFM OGH500:
Product characteristics | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Type of light | red light | ||||||||||
Housing | threaded type | ||||||||||
Application | |||||||||||
Special feature | Background suppression | ||||||||||
Function principle | Diffuse reflection sensor | ||||||||||
Electrical data | |||||||||||
Operating voltage [V] | 10...36 DC | ||||||||||
Current consumption [mA] | 25 | ||||||||||
Protection class | II | ||||||||||
Reverse polarity protection | yes | ||||||||||
Type of light | red light | ||||||||||
Wave length [nm] | 624 | ||||||||||
Outputs | |||||||||||
Electrical design | PNP | ||||||||||
Output function | light-on/dark-on mode; (programmable) | ||||||||||
Max. voltage drop switching output DC [V] | 2.5 | ||||||||||
Permanent current rating of switching output DC [mA] | 150; (200 (...60 °C)) | ||||||||||
Switching frequency DC [Hz] | 1000 | ||||||||||
Factory setting |
|
||||||||||
Short-circuit protection | yes | ||||||||||
Type of short-circuit protection | pulsed | ||||||||||
Overload protection | yes | ||||||||||
Detection zone | |||||||||||
Range [mm] | 15...300; (white paper 200 x 200 mm 90% remission) | ||||||||||
Range on white object (90 % remission) [mm] | 15...300 | ||||||||||
Range on grey object (18 % remission) [mm] | 15...290 | ||||||||||
Range on black object (6 % remission) [mm] | 15...190 | ||||||||||
Range adjustable | yes | ||||||||||
Max. light spot diameter [mm] | 25 | ||||||||||
Light spot dimensions refer to | at maximum range | ||||||||||
Background suppression available | yes | ||||||||||
Operating conditions | |||||||||||
Ambient temperature [°C] | -25...80 | ||||||||||
Protection | IP 67 | ||||||||||
Tests / approvals | |||||||||||
EMC |
|
||||||||||
MTTF [years] | 362 | ||||||||||
Mechanical data | |||||||||||
Weight [g] | 61.1 | ||||||||||
Housing | threaded type | ||||||||||
Dimensions [mm] | M18 x 1 / L = 72 | ||||||||||
Thread designation | M18 x 1 | ||||||||||
Materials | stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU | ||||||||||
Lens material |
|
||||||||||
Displays / operating elements | |||||||||||
Display |
|
||||||||||
Accessories | |||||||||||
Items supplied |
|
||||||||||
Remarks | |||||||||||
Remarks |
|
||||||||||
Pack quantity | 1 pcs. | ||||||||||
Electrical connection | |||||||||||
Connection | Connector: 1 x M12; coding: A | ||||||||||
Diagrams and graphs | |||||||||||
|
|||||||||||
accuracy graph |
|
