Sensor/actuator cable - SAC-4P-M12MS/5

Sensor/actuator cable - SAC-4P-M12MS/5

Name: Sensor/actuator cable - SAC-4P-M12MS/5
Brand: No brand
SKU: SAC-4P-M12MS/5
Price: 544000 VND
Availability: InStock
Rating: 5 (1 reviews)

544.000VND ~~680.000VND~~ -20%

Mã sản phẩm:

SAC-4P-M12MS/5

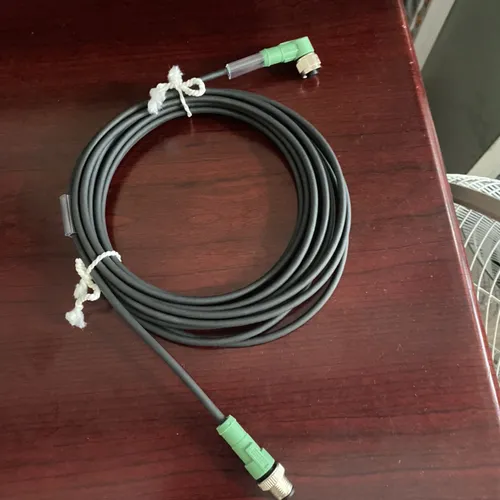

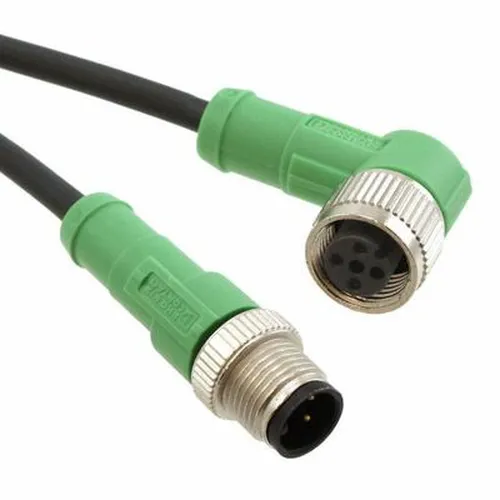

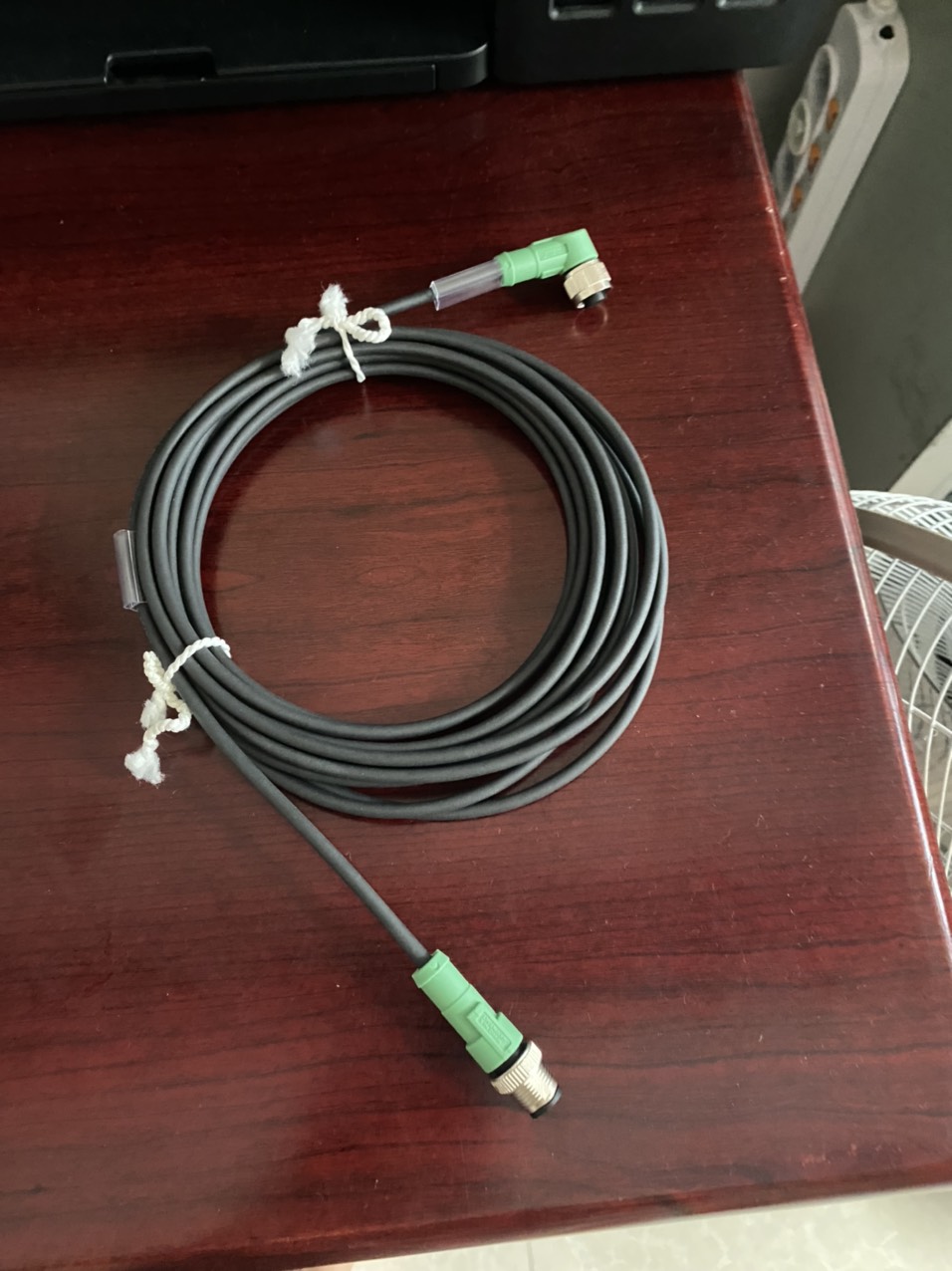

Phoenix Contact Sensor/actuator cable, 4-pin, Plug straight M12 coding: A, on Socket angled M12, coding: A, cable length: 5 m

Tình trạng:

Còn hàng

Số lượng:

Liên hệ

Mô tả
Bình luận

Cable sử dụng cho cảm biến loại conector M12 : 4PIN hoặc 5PIN :


Dimensional drawing Plug, M12 x 1, straight, shielded		Dimensional drawing M12 x 1 socket, angled

Circuit diagram Contact assignment of the M12 plug and the M12 socket		Schematic diagram Pin assignment M12 plug, 4-pos., A-coded, view plug side

Schematic diagram Pin assignment M12 socket, 4-pos., A-coded, view female side		Cable cross section PUR halogen-free black [PUR]

General

Rated current at 40°C	4 A
Rated voltage	250 V AC
	250 V DC
Number of positions	4
Insulation resistance	≥ 100 MΩ
Coding	A - standard
Status display	No
Overvoltage category	II
Degree of pollution	3
Insertion/withdrawal cycles	≥ 100
Torque	0.4 Nm

Cable type	PUR halogen-free black
Cable type (abbreviation)	PUR
Cable abbreviation	Li9Y11Y-HF
UL AWM style	20549 / 10493 (80°C/300 V)
Conductor cross section	4x 0.34 mm²
AWG signal line	22
Conductor structure signal line	42x 0.10 mm
Core diameter including insulation	1.27 mm ±0.02 mm
Thickness, insulation	≥ 0.21 mm
Wire colors	brown, white, blue, black
Overall twist	4 wires, twisted
Outer sheath thickness	approx. 0.5 mm
External cable diameter D	4.2 mm ±0.15 mm
