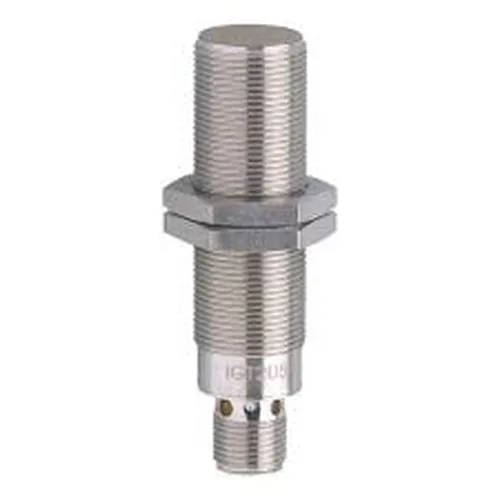

Thông số kỹ thuật cảm biến tiệm cận IFM IGT205:
| Electrical design | PNP/NPN | ||||
| Output function | normally open | ||||
| Sensing range [mm] | 8 | ||||
| Housing | threaded type | ||||
| Dimensions [mm] | M18 x 1 / L = 70 | ||||
| Application | |||||
|---|---|---|---|---|---|
| Special feature | Gold-plated contacts; Increased sensing range; Optical setting aid | ||||
| Application | regular cleaning processes | ||||
| Electrical data | |||||
| Operating voltage [V] | 10…36 DC | ||||
| Protection class | II | ||||
| Reverse polarity protection | yes | ||||
| Outputs | |||||
| Electrical design | PNP/NPN | ||||
| Output function | normally open | ||||
| Max. voltage drop switching output DC [V] | 2.8 | ||||
| Minimum load current [mA] | 2; (only in 2-wire operation) | ||||
| Max. leakage current [mA] | 0.5; (only in 2-wire operation) | ||||
| Permanent current rating of switching output DC [mA] | 100 | ||||
| Switching frequency DC [Hz] | 400 | ||||
| Short-circuit protection | yes | ||||
| Type of short-circuit protection | pulsed | ||||
| Overload protection | yes | ||||
| Detection zone | |||||
| Sensing range [mm] | 8 | ||||
| Operating distance [mm] | 0…6.48 | ||||
| Increased sensing range | yes | ||||
| Accuracy / deviations | |||||
| Correction factor | steel: 1 / stainless steel: 0.8 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 | ||||
| Hysteresis [% of Sr] | 1…20 | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | 0…100 | ||||
| Protection | IP 68; IP 69K; (“COP”) | ||||
| Mechanical data | |||||
| Weight [g] | 54.8 | ||||
| Housing | threaded type | ||||
| Mounting | flush mountable | ||||
| Dimensions [mm] | M18 x 1 / L = 70 | ||||
| Thread designation | M18 x 1 | ||||
| Materials | threaded sleeve: stainless steel (1.4404 / 316L); sensing face: PEEK; lock nuts: stainless steel | ||||
| Displays / operating elements | |||||
| Display |
|
||||
| Optical setting aid | yes | ||||
| Accessories | |||||
| Accessories (supplied) |
|
||||
| Remarks | |||||
| Pack quantity | 1 pcs. | ||||
| Electrical connection – plug | |||||
| Connector: 1 x M12; Contacts: gold-plated | |||||
Thông tin bổ sung
| Thương hiệu | |
|---|---|
| Thời gian bảo hành |
1 Năm |
| Điện áp ngõ vào |
12V, 24V, 36V |
| Khoảng cách phát hiện |
8mm |
| Ngõ ra |
NO, NPN, PNP |
