| Part Number | FT-A11 |
| Sensing mode | Thru-beam type |
| Fiber type | Wide beam |

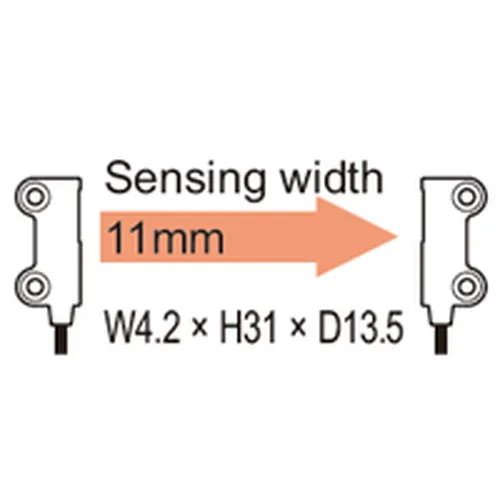

| Fiber head dia. | Sensing width 11 mm |
| Fiber head length | W4.2 x H31 x D13.5 mm |
| With sleeve | No |
| Beam direction | Wide-area |
| Beam axis dia./ Spot diameter | 2.2 x 11 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（FAST） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（H-SP） | 1,100 mm 43.307 in (FX-500 series) |
