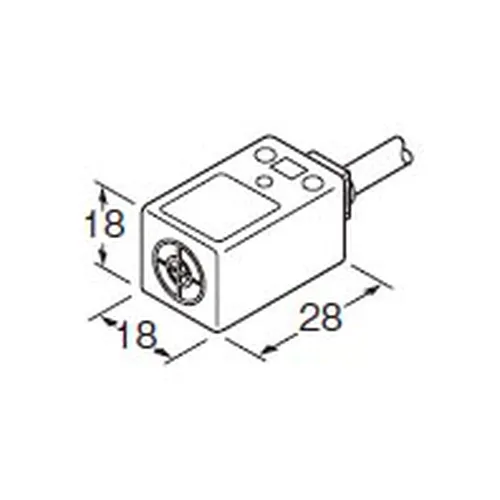

| Part Number | GL-18HL |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Max. operation distance | 12 mm 0.472 in ± 10 % (Note)The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation. |
| Stable sensing range | 0 to 10 mm 0 to 0.394 in (Note)The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation. |
| Standard sensing object | Iron sheet 40 × 40 × t 1 mm 1.575 × 1.575 × t 0.039 in |
| Hysteresis | 15 % or less of operation distance (with standard sensing object) |
| Supply voltage | 10 to 30 V DC Ripple P-P 10 % or less |
| Current consumption | 10 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current) |
| Output:Utilization category | DC-12 or DC-13 |
| Output:Output operation | Normally open |
| Max. response frequency | 500Hz |
| Operation indicator | Red LED (lights up when the output is ON) |
| Environmental resistance:Pollution degree | 3 (Industrial environment) |
| Protection | IP67 (IEC), IP67g (JEM) (Note:If using the sensor in an environment where cutting oil droplets splatter, the sensor may be deteriorated due to added substances in the oil. Please check the resistivity of the sensor against the cutting oil you are using beforehand.) |
| Ambient temperature | -25 to +70 ℃ -13 to +158℉, Storage: -25 to +70 ℃ -13 to +158℉ |
| Ambient humidity | 45 to 85 % RH, Storage: 45 to 85 % RH |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 50 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 1,000 m/s2 acceleration (100 G approx.) in X, Y and Z directions three times each |
| Sensing range variation:Temperature characteristics | Over ambient temperature range -25 to +70 ℃ -13 to +158℉ : within ±10 % of sensing range at +20 ℃ +68℉ |
| Sensing range variation:Voltage characteristics | Within ±2 % for ±10 % fluctuation of the supply voltage |
| Material | Enclosure: Polyarylate |
| Cable | 0.3 mm2 3-core oil resistant cabtyre cable, 1 m 3.281 ft long |
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Weight | Net weight : 45 g approx. |
| Accessories | MS-GL18HL (Sensor mounting bracket): 1 set |
