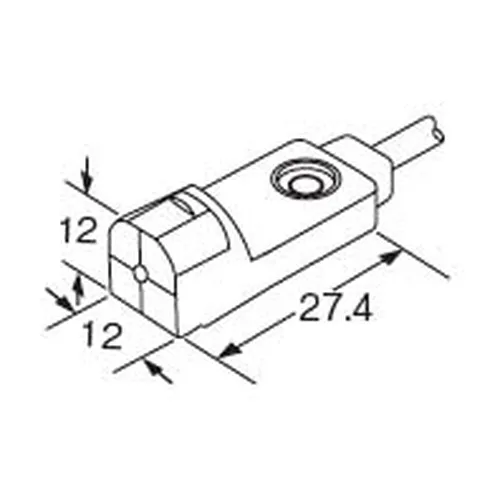

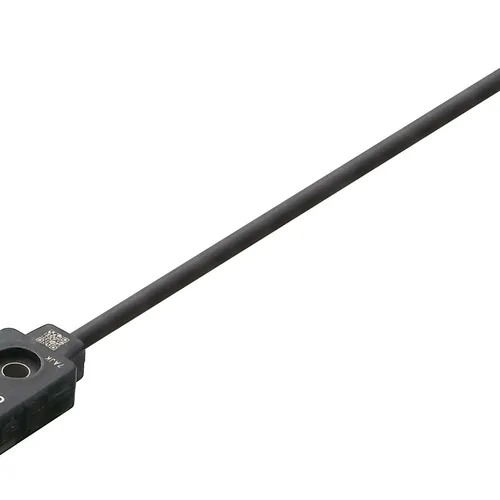

| Part Number | GX-H12A |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Max. operation distance | 4.0 mm 0.158 in plus or minus 8 % (Note) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object. |
| Stable sensing range | 0 to 3.3 mm 0 to 0.130 in (Note) The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation. |
| Standard sensing object | Iron sheet 20 × 20 × t 1 mm 0.787 × 0.787 × t 0.039 in |
| Hysteresis | 20 % or less of operation distance(with standard sensing object) |
| Repeatability | Along sensing axis, perpendicular to sensing axis: 0.04 mm 0.002 in or less |
| Supply voltage | 12 to 24 V DC +10/-15 % Ripple P-P 10 % or less |
| Current consumption | 15 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (at 100 mA sink current) |
| Output:Output operation | Normally open |
| Output:Utilization category | DC-12 or DC-13 |
| Max. response frequency | 500 Hz |
| Operation indicator | Orange LED(lights up when the output is ON) |
| Protection | IP68 (IEC), IP68g (JEM) (Note) Panasonic Electric Works SUNX's IP68 test method 1. Immerse at 0 m below 0 ℃ +32 ℉ water surface and leave for 30 min. Then, immerse at 0 m below +70 ℃ +158 ℉ water surface and leave for 30 min. 2. Regard the heat shock test in 1 as one cycle and perform 20 cycles. 3. Leave in water at a depth of 1 m 3.281 ft in water for 500 hours. 4. After tests 1 to 3, insulation resistance, voltage withstandability, current consumption, and sensing ranges must meet the standard values. (Note) If using the sensor in an environment where cutting oil droplets splatter, the sensor may be deteriorated due to added substances in the oil. |
| Ambient temperature | -25 to +70 ℃ -13 to +158 ℉ , Storage: - 40 to +85 ℃ - 40 to +185 ※ |
| Ambient humidity | 45 to 85 % RH, Storage: 35 to 95 % RH |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 50 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (Max. 20 G) in X, Y and Z directions for two hours each |
| Shock resistance | 10,000 m/s2 acceleration (1,000 G approx.) in X, Y and Z directions three times each |
| Sensing range variation:Temperature characteristics | Over ambient temperature range -25 to +70 ℃ -13 to +158degrees Fahrenheit: Within plus or minus 8 % of sensing range at +23 ℃ +73 ℉ |
| Sensing range variation:Voltage characteristics | Within plus or minus 2 % for +10/-15 % fluctuation of the supply voltage |
| Material | Enclosure: PBT Indicator part: Polyester |
| Cable | 0.15 mm2 3-core oil, heat and cold resistant cabtyre cable, 1 m 3.281 ft long |
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Net weight | 20 g approx. |
