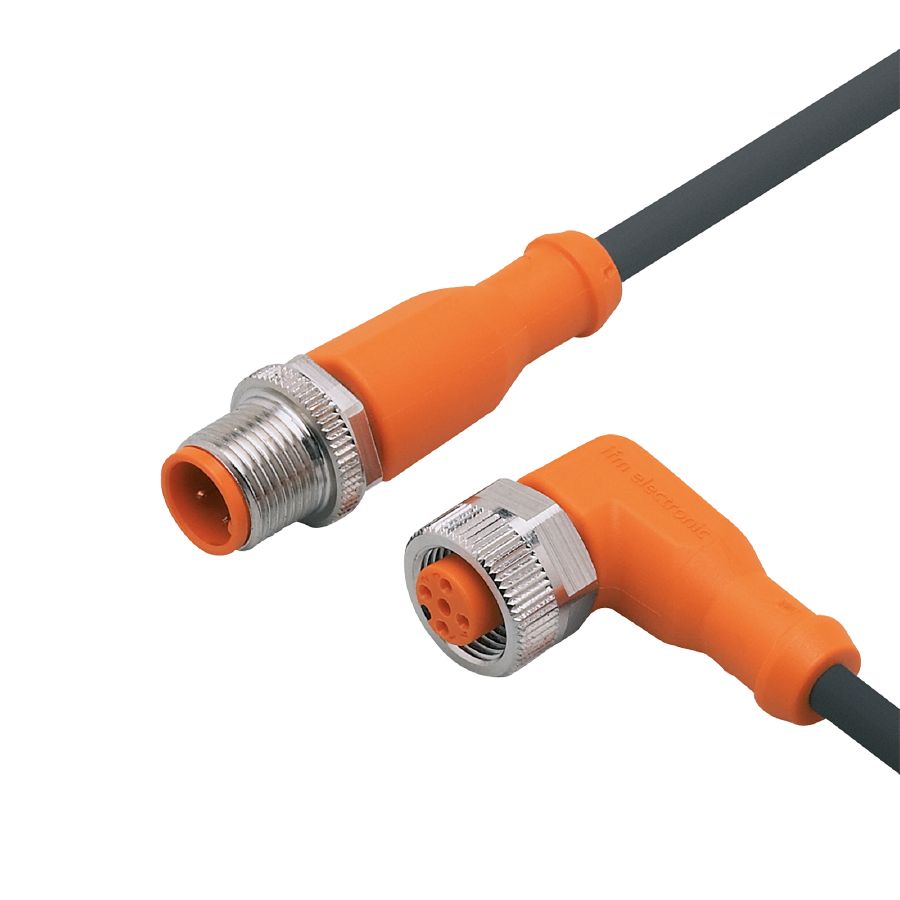

Cáp kết nối IFM EVC019

Cáp kết nối IFM EVC019

581.000VND 830.000VND -30%
IFM
EVC019

SKU: EVC019
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng

Còn hàng
1

 Thông số kỹ thuật IFM EVC019:

Application
Special feature Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone yes
Electrical data
Operating voltage [V] < 250 AC / < 300 DC
Protection class II
Max. current load total [A] 4
Operating conditions
Ambient temperature [°C] -25…90
Note on ambient temperature
cULus: …75
Ambient temperature (moving) [°C] -25…90
Note on ambient temperature (moving)
cULus: …75
Storage temperature [°C] -25…55
Storage humidity [%] 10…100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection IP 65; IP 67; IP 68; IP 69K
Mechanical data
Weight [g] 165.7
Materials housing: TPU orange; Sealing: FKM
Material nut brass, nickel-plated / brass, nickel-plated
Drag chain suitability yes
Drag chain suitability
bending radius for flexible use min. 10 x cable diameter
travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles > 5 Mio.
torsional strain ± 180 °/m
Remarks
Notes Please see the technical note under “Downloads”
Pack quantity 1 pcs.
Electrical connection – plug
  Connector: 1 x M12, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6…1.5 Nm
Electrical connection
Connection Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection – socket
  Connector: 1 x M12, angled; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6…1.5 Nm
