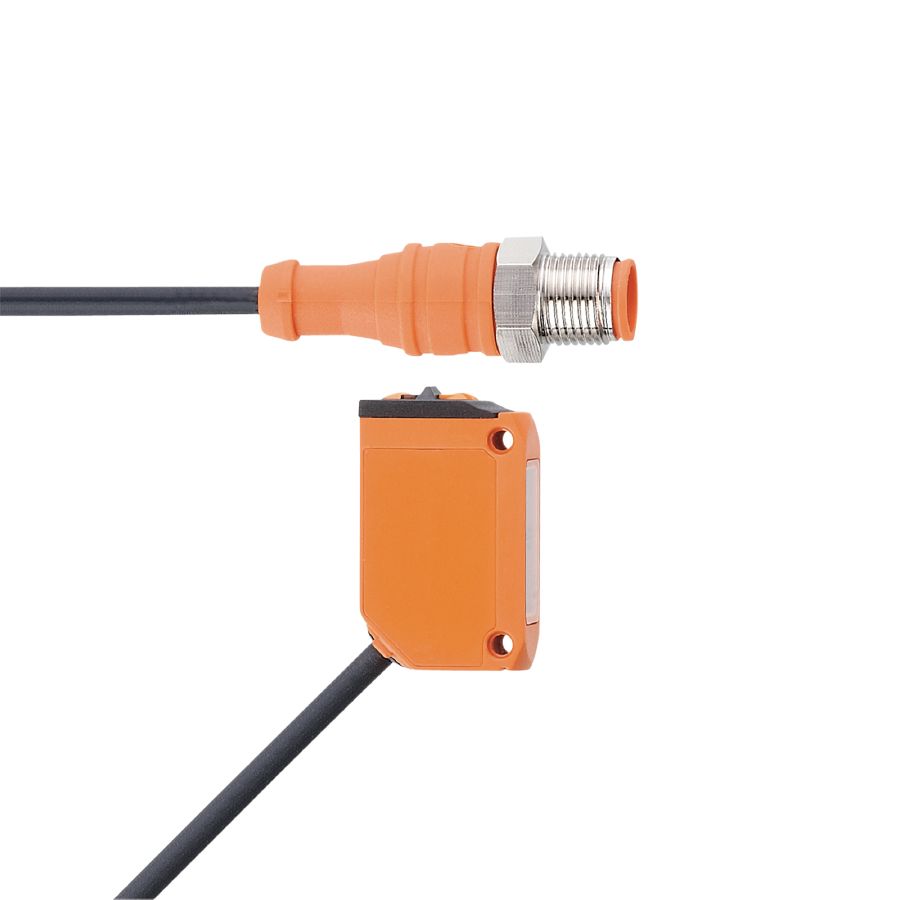

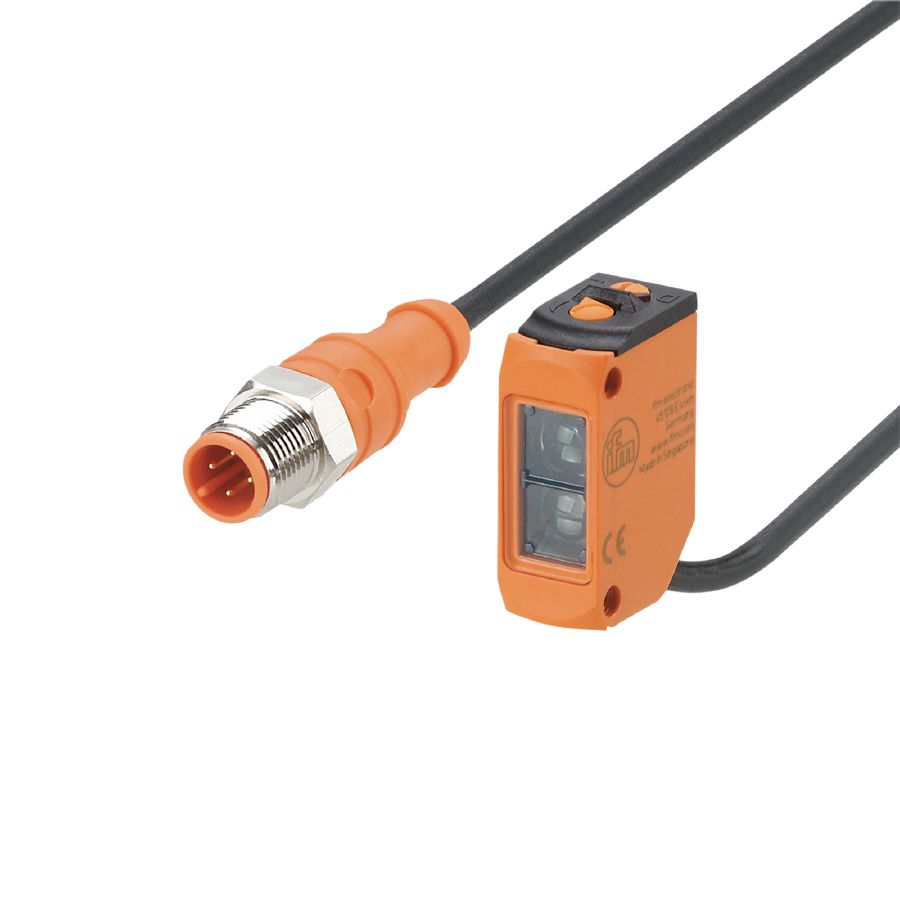

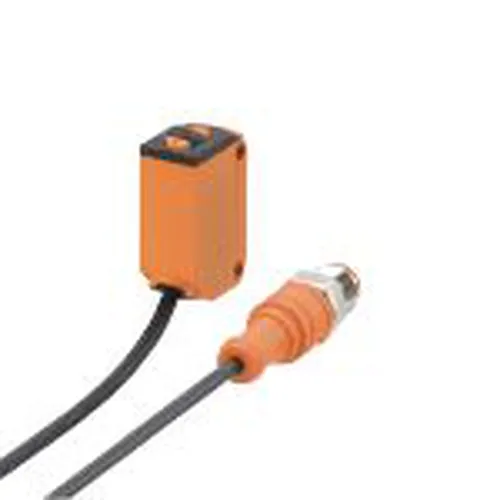

Thông số kỹ thuật cảm biến quang IFM 06H201 :
Product characteristics | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Type of light | red light | ||||||||||
Housing | rectangular | ||||||||||
Application | |||||||||||
Special feature | Background suppression | ||||||||||
Function principle | Diffuse reflection sensor | ||||||||||
Electrical data | |||||||||||
Operating voltage [V] | 10...30 DC | ||||||||||
Current consumption [mA] | 22; ((24 V)) | ||||||||||
Protection class | III | ||||||||||
Reverse polarity protection | yes | ||||||||||
Type of light | red light | ||||||||||
Wave length [nm] | 633 | ||||||||||
Outputs | |||||||||||
Electrical design | PNP | ||||||||||
Output function | light-on/dark-on mode; (selectable) | ||||||||||
Max. voltage drop switching output DC [V] | 2.5 | ||||||||||
Permanent current rating of switching output DC [mA] | 100 | ||||||||||
Switching frequency DC [Hz] | 1000 | ||||||||||
Short-circuit protection | yes | ||||||||||
Type of short-circuit protection | pulsed | ||||||||||
Detection zone | |||||||||||
Range [mm] | 2...200; (white paper 200 x 200 mm) | ||||||||||
Range on white object (90 % remission) [mm] | 2...200 | ||||||||||
Range on grey object (18 % remission) [mm] | 4...200 | ||||||||||
Range on black object (6 % remission) [mm] | 8...200 | ||||||||||
Range adjustable | yes | ||||||||||
Max. light spot diameter [mm] | 8 | ||||||||||
Light spot dimensions refer to | at maximum range | ||||||||||
Background suppression available | yes | ||||||||||
Operating conditions | |||||||||||
Ambient temperature [°C] | -25...60 | ||||||||||
Protection | IP 65; IP 67 | ||||||||||
Tests / approvals | |||||||||||
EMC |
|
||||||||||
MTTF [years] | 683 | ||||||||||
UL approval |
|
||||||||||
Mechanical data | |||||||||||
Weight [g] | 33.2 | ||||||||||
Housing | rectangular | ||||||||||
Dimensions [mm] | 35.4 x 13 x 21 | ||||||||||
Materials | housing: ABS; PPSU; Sealing: EPDM | ||||||||||
Lens material |
|
||||||||||
Lens alignment | side lens | ||||||||||
Tightening torque [Nm] | 0.5 | ||||||||||
Displays / operating elements | |||||||||||
Display |
|
||||||||||
Remarks | |||||||||||
Remarks |
|
||||||||||
Pack quantity | 1 pcs. | ||||||||||
Electrical connection | |||||||||||
Connection | Cable: 0.3 m, PUR; 3 x 0.25 mm² | ||||||||||
Connection | Connector: 1 x M12; coding: A | ||||||||||
Diagrams and graphs | |||||||||||
|
|||||||||||
