IFM IM5119

Nhà sản xuất:

IFM

Mã sản phẩm:

IM5119

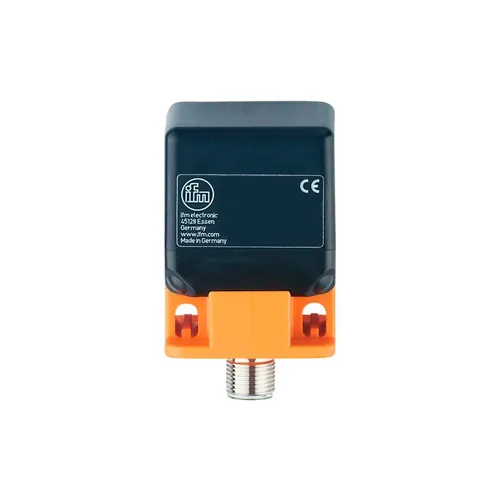

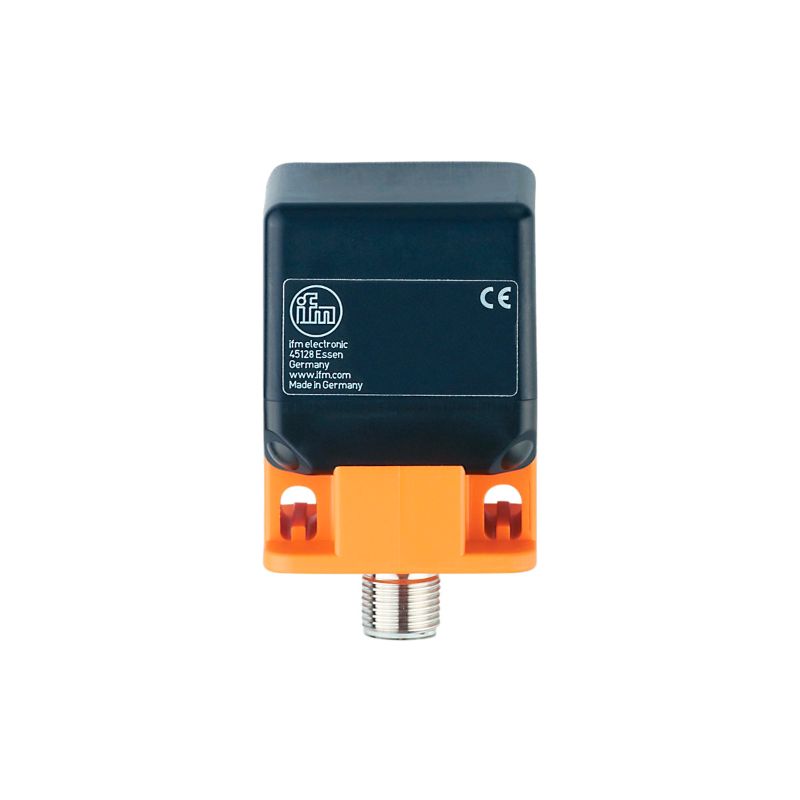

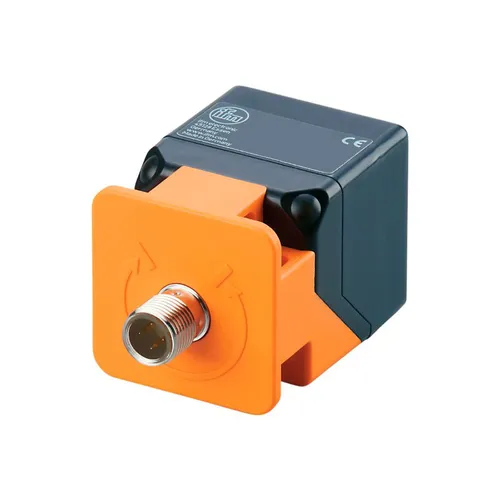

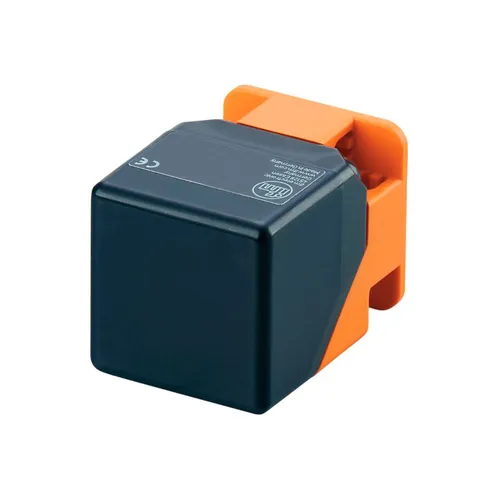

Inductive sensor IM5119

Magnetic-field immune for welding applications
Resistant to weld slag thanks to non-stick coating
Five positions of the sensing face selectable
Long sensing range for use in conveying
Correction factor 1: Constant sensing range on all metals

Tình trạng:

Còn hàng

Liên hệ

Mô tả
Bình luận

Thông số kỹ thuật IFM IM5119 :

Product characteristics

Electrical design

PNP

Output function

normally open

Sensing range [mm]

Housing

rectangular

Dimensions [mm]

40 x 40 x 54

Application

Special feature

Correction factor K = 1; Magnetic-field immune; anti-spatter

Magnetic-field immune

yes

Max. magnetic field immunity [mT]

300

Electrical data

Operating voltage [V]

10...36 DC

Current consumption [mA]

< 20

Protection class

Reverse polarity protection

yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

200

Switching frequency DC [Hz]

200

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Sensing range [mm]

Real sensing range Sr [mm]

20 ± 10 %

Operating distance [mm]

0...16.2

Accuracy / deviations

Correction factor

steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1

Hysteresis [% of Sr]

1...20

Switch point drift [% of Sr]

-10...10

Correction factor K = 1

yes

Operating conditions

Ambient temperature [°C]

-25...70

Protection

IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	8 kV CD / 4 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

1165

UL approval

Ta	-25...70 °C
Enclosure type	Type 1
voltage supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]

141.5

Housing

rectangular

Sensing face

5 positions selectable

Mounting

flush mountable

Dimensions [mm]

40 x 40 x 54

Materials

housing: PA anti-spatter; sensing face: PA black anti-spatter; end cap: PA; clamp: orange; screw: stainless steel (1.4567 / 304Cu)

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

Pack quantity

1 pcs.

Electrical connection - plug

Connection

Connector: 1 x M12; Locking: locking, rotatable, stainless steel (1.4404 / 316L)
