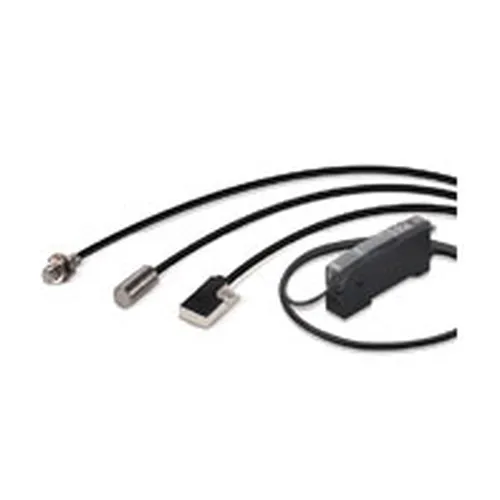

Sensors
| Model | E2CY-X1R5A E2CY-C1R5A-1 |
E2CY-C2A(F) | E2CY-V3A | |
|---|---|---|---|---|
| Stable sensing distance | 0 to 1.5 mm | 0 to 2 mm | 0 to 3 mm | |
| Differential travel | 10% max. of sensing distance with Amplifier Unit in FINE mode 15% max. of sensing distance with Amplifier Unit in NORM mode |
|||
| Detectable object | Non-ferrous metal | |||
| Standard sensing object | Aluminum: 8 × 8 × 1 mm | Aluminum: 12 × 12 × 1 mm | ||
| Response frequency *1 | 40 Hz min. with Amplifier Unit in FINE mode 100 Hz min. with Amplifier Unit in NORM mode |
|||
| Ambient temperature range | Operation: -10 to 55°C, Storage: -25 to 70°C (with no icing or condensation) | |||
| Ambient humidity range | Operating and storage: 35% to 95% (with no condensation) | |||
| Temperature influence *2 |
-10 to 55°C | ±15% max. of sensing distance at 23°C |
distance at 23°C ±10% max. of sensing distance at 23°C |
±15% max. of sensing distance at 23°C |
| 0 to 40°C | ±10% max. of sensing distance at 23°C *3 |
±10% max. of sensing distance at 23°C |
||
| Vibration resistance | Destruction: 10 to 500 Hz, 2-mm double amplitude or 150 m/s2 for 2 hours each in X, Y, and Z directions |
|||
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | |||
| Degree of protection | IEC 60529 IP67 | |||
| Connection method | Pre-wired (High-frequency coaxial cable, Standard cable length: 3 m) | |||
| Cable length compensation | 0.5 to 5 m *4 | |||
| Weight (packed state) | Approx. 35 g | |||
| Materials | Case | Stainless steel | Zinc die-cast | |
| Sensing surface |
Heat-resistant ABS (E2CY-C2AF: Fluororesin) | |||
| Cable | Soft PVC (E2CY-C2AF: Fluororesin) | |||
| Clamping nuts | Nickel-plated brass (E2CY-X1R5A only) | |||
| Toothed washers |
Zinc-plated iron (E2CY-X1R5A only) | |||
| Mounting screws |
Zinc-plated iron (E2CY-V3A only) | |||
Amplifier Unit
| Model | E2CY-SD11 | E2CY-SD41 | |
|---|---|---|---|
| Power supply voltage | 12 to 24 VDC ±10%, ripple: 10% max. | ||
| Power consumption | 1,080 mW max. (45 mA max. at 24 VDC) | ||
| Sensing distance adjustment range |
10% max. of stable sensing distance | ||
| Sensitivity setting | Teaching/manual adjustment | ||
| Control output | NPN open collector (26.4 VDC max.), load current:100 mA max., residual voltage: 1 V max. |
PNP open collector (26.4 VDC max.), load current: 100 mA max., residual voltage: 1 V max. |
|
| Functions | OFF-delay timer | 0 to 40 ms (1 to 20 ms: 1-ms increments, 20 to 40 ms: 5-ms increments) | |
| Zero reset | Supported. | ||
| Intial reset | Supported. (All settings are returned to their default values.) | ||
| Hysteresis setting | 3 to variable | ||
| Self diagnosis | Displays errors (sensor disconnection, sensor short-circuit, or output short-circuit) | ||
| Operation mode | Changed with NO/NC Switch. | ||
| Protection circuits | Power supply reverse polarity protection and output short-circuit protection | ||
| Indicator | Operation indicator (orange) | ||
| Digital display | Detection amount display (FINE: 4,000 max., NORM: 2,000 max.), bar display, function display (red) |
||
| Reverse display | Supported. | ||
| Ambient temperature range | Operation: -10 to 55°C, Storage: -25 to 70°C (with no icing or condensation) | ||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | ||
| Temperature influence * | ±10% max. of sensing distance at 23°C in the temperature range of -10 to 55°C | ||
| Voltage influence | ±1% max. of sensing distance in the rated voltage range ±10% | ||
| Insulation resistance | 20 MΩ min. (at 500 VDC) between currentcarrying parts and case | ||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute. Between current-carrying parts and case | ||
| Vibration resistance | Destruction: 10 to 150 Hz, 1.5-mm double amplitude or 100 m/s2 for 2 hours each in X, Y, and Z directions |
||
| Shock resistance | Destruction: 300 m/s2 3 times each in X, Y, and Z directions | ||
| Degree of protection | IEC 60529 IP50 (with Sensor cable connected and protective cover attached) | ||
| Connection method | Pre-wired (Standard cable length: 2 m) | ||
| Weight (packed state) | Approx. 100 g | ||
| Materials | Case | PBT | |
| Cover | Polycarbonate | ||
| Cable connecting screws |
Zinc-plated iron | ||
| Accessories | E39-L143 Mounting Bracket (SUS304 stainless steel), instruction manual | ||
Sensors
E2CY-X1R5A
E2CY-C1R5A-1
E2CY-C2A(F)
* E2CY-C2AF: 2.5-dia. coaxial cable (Fluororesin) with 1 conductor (Conductor cross section: 0.17 mm2),
Standard length: 3 m
E2CY-V3A
Amplifier Unit
E2CY-SD11
E2CY-SD41
