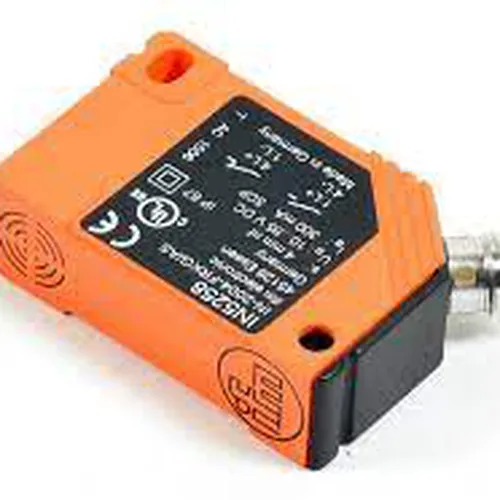

Thông số kỹ thuật cảm biến tiệm cận IFM IN5258 :
| Product characteristics | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Electrical design | PNP/NPN | ||||||||
| Output function | normally open / normally closed; (selectable) | ||||||||
| Sensing range [mm] | 4 | ||||||||
| Housing | rectangular | ||||||||
| Dimensions [mm] | 40 x 12 x 26 | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | 10...55 DC | ||||||||
| Protection class | III | ||||||||
| Reverse polarity protection | yes | ||||||||
| Outputs | |||||||||
| Electrical design | PNP/NPN | ||||||||
| Output function | normally open / normally closed; (selectable) | ||||||||
| Max. voltage drop switching output DC [V] | 4.6 | ||||||||
| Minimum load current [mA] | 4 | ||||||||
| Max. leakage current [mA] | 0.5 | ||||||||
| Permanent current rating of switching output DC [mA] | 300 | ||||||||
| Switching frequency DC [Hz] | 1200 | ||||||||
| Short-circuit protection | yes | ||||||||
| Type of short-circuit protection | pulsed | ||||||||
| Overload protection | yes | ||||||||
| Detection zone | |||||||||
| Sensing range [mm] | 4 | ||||||||
| Real sensing range Sr [mm] | 4 ± 10 % | ||||||||
| Operating distance [mm] | 0...3.25 | ||||||||
| Accuracy / deviations | |||||||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 | ||||||||
| Hysteresis [% of Sr] | 1...15 | ||||||||
| Switch point drift [% of Sr] | -10...10 | ||||||||
| Operating conditions | |||||||||
| Ambient temperature [°C] | -25...80 | ||||||||
| Protection | IP 65 | ||||||||
| Tests / approvals | |||||||||
| EMC |
|
||||||||
| MTTF [years] | 1645 | ||||||||
| UL approval |
|
||||||||
| Mechanical data | |||||||||
| Weight [g] | 21 | ||||||||
| Housing | rectangular | ||||||||
| Mounting | non-flush mountable | ||||||||
| Dimensions [mm] | 40 x 12 x 26 | ||||||||
| Materials | PBT | ||||||||
| Displays / operating elements | |||||||||
| Display |
|
||||||||
| Remarks | |||||||||
| Pack quantity | 1 pcs. | ||||||||
