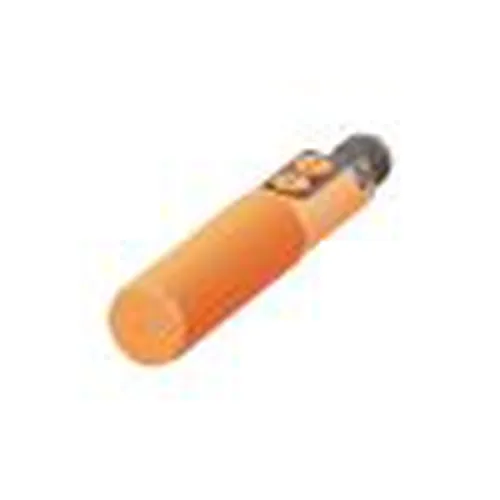

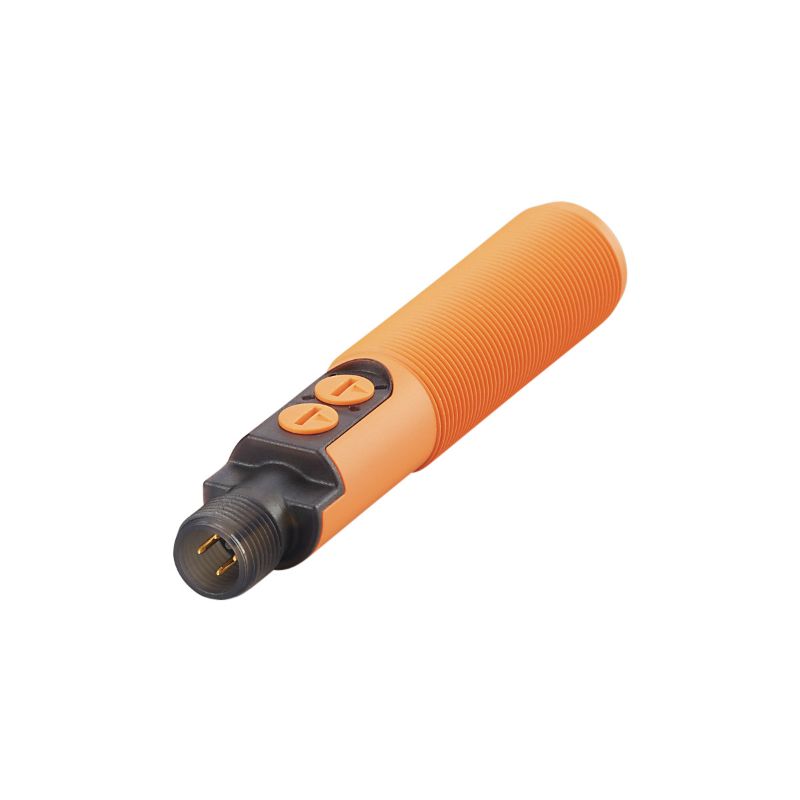

Thông số kỹ thuật cảm biến điện dung IFM KG6000:
| Product characteristics | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical design | PNP | ||||||||||
| Output function | normally open / normally closed; (selectable) | ||||||||||
| Sensing range [mm] | 0.5...30 | ||||||||||
| Communication interface | IO-Link | ||||||||||
| Housing | threaded type | ||||||||||
| Dimensions [mm] | M18 x 1 / L = 92.5 | ||||||||||
| Application | |||||||||||
| Special feature | Optical setting aid | ||||||||||
| Medium temperature [°C] | -25...110 | ||||||||||
| Electrical data | |||||||||||
| Operating voltage [V] | 10...30 DC | ||||||||||
| Current consumption [mA] | < 22 | ||||||||||
| Protection class | III | ||||||||||
| Reverse polarity protection | yes | ||||||||||
| Outputs | |||||||||||
| Electrical design | PNP | ||||||||||
| Output function | normally open / normally closed; (selectable) | ||||||||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||||||||
| Permanent current rating of switching output DC [mA] | 200 | ||||||||||
| Switching frequency DC [Hz] | 30 | ||||||||||
| Short-circuit proof | yes | ||||||||||
| Overload protection | yes | ||||||||||
| Detection zone | |||||||||||
| Sensing range [mm] | 0.5...30 | ||||||||||
| Sensing range adjustable | yes | ||||||||||
| Factory setting sensing range [mm] | 15 | ||||||||||
| Real sensing range Sr [mm] | 15 ± 10 % | ||||||||||
| Accuracy / deviations | |||||||||||
| Hysteresis [% of Sr] | 1...15 | ||||||||||
| Switch point drift [% of Sr] | -10...10 | ||||||||||
| Interfaces | |||||||||||
| Communication interface | IO-Link | ||||||||||
| Transmission type | COM2 (38,4 kBaud) | ||||||||||
| IO-Link revision | 1.1 | ||||||||||
| SDCI standard | IEC 61131-9 | ||||||||||
| Profiles | Smart Sensor: Process Data Variable; Device Identification | ||||||||||
| SIO mode | yes | ||||||||||
| Required master port type | A | ||||||||||
| Min. process cycle time [ms] | 20 | ||||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; normally open / normally closed (configurable); PNP / NPN (parametrierbar); switch point setting; Hysteresis | ||||||||||
| Operating conditions | |||||||||||
| Ambient temperature [°C] | -25...80 | ||||||||||
| Protection | IP 65; IP 67; IP 69K | ||||||||||
| Tests / approvals | |||||||||||
| EMC |
|
||||||||||
| Vibration resistance |
|
||||||||||
| Shock resistance |
|
||||||||||
| UL approval |
|
||||||||||
| Mechanical data | |||||||||||
| Weight [g] | 26.7 | ||||||||||
| Housing | threaded type | ||||||||||
| Mounting | non-flush mountable | ||||||||||
| Dimensions [mm] | M18 x 1 / L = 92.5 | ||||||||||
| Thread designation | M18 x 1 | ||||||||||
| Materials | PBT; PC; POM | ||||||||||
| Displays / operating elements | |||||||||||
| Display |
|
||||||||||
| Optical setting aid | yes | ||||||||||
| Accessories | |||||||||||
| Items supplied |
|
||||||||||
| Remarks | |||||||||||
| Pack quantity | 1 pcs. | ||||||||||
| Electrical connection - plug | |||||||||||
| Connection | Connector: 1 x M12 | ||||||||||
