Encoder Omron E6B2-CWZ6C 1000P/R 2M

Nhà sản xuất:

OMRON

Mã sản phẩm:

E6B2-CWZ6C 1000P/R 2M

Hãng sản xuất: Omron
Chất lượng: Mới 100%
Bảo hành: Chính hãng

Tình trạng:

Còn hàng

Liên hệ

Mô tả
Bình luận

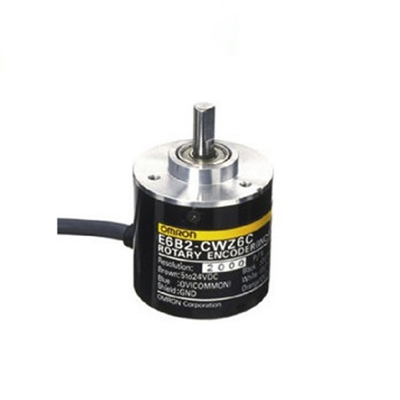

Bộ mã hóa vòng quay Omron E6B2-CWZ6C 1000P/R 2M

Categorise		Incremental Shaft model
Diameter		40 mm dia.
Power supply voltage		5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max.
Current consumption		80 mA max.
Resolution		1000 P/R
Inrush current		Approx. 9 A (0.3 ms)
Output phases		A, B and Z
Control output	Output type	NPN open collector
	Load power supply voltage	30 VDC max.
	Sink current	35 mA max.
	Residual voltage	0.4 V max. (at sink current 35 mA)
Starting positional point		Equipped
Max. response frequency		100 kHz
Phase difference on output		90±45 ° between A and B (1/4 T ± 1/8 T)
Rise and fall times of output		1 µs max. (Cable length: 2 m max., output voltage: 5 V, load resistance: 1 kΩ)
Starting torque		0.98 mN.m max.
Moment of inertia		1 x 10^-6 kg.m² max.
Shaft loading		Radial: 30 N Thrust: 20 N
Max. permissible rotation		6000 r/min
Protective circuit		Output short-cut protection Power supply reverse polarity protection
Ambient temperature		Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing)
Ambient humidity		Operating: 35 to 85% RH (with no condensation) Storage: 35 to 85% RH (with no condensation)
Insulation resistance		Between charged parts and the case: 20 MΩ or higher (500 VDC megger)
Dielectric strength		Between charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistance		Destruction: 10 to 500 Hz, 2-mm or 150 m/s² double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock resistance		Destruction: 1000 m/s² for 3 times each in X, Y, and Z directions
Degree of protection		IEC: IP50
Connection method		Pre-wired models (Cable length: 2 m)
Material		Case: ABS Main Unit: Aluminum Shaft: SUS420J2
Accessories		Instruction manual, Couplings, Hex-head spanner
